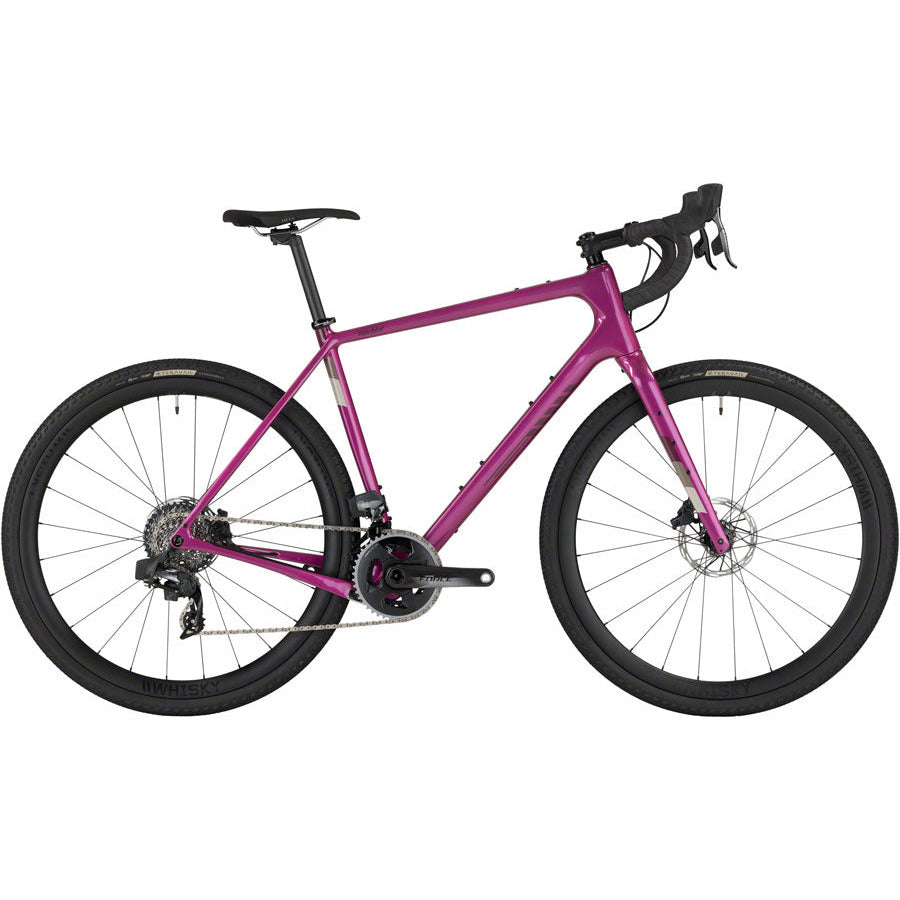

Warbird is Salsa's gravel race bike, built on years of experience racing in some of the nation’s premier gravel events. Its carbon fiber frameset, our carefully-honed gravel race geometry, and plentiful mounts for water, tools, and accessories make Warbird a top contender in the gravel bike world.

• High-modulus carbon frame with rear thru-axle dropouts and rear rack compatibility via Rack-Lock seat collar (sold separately)
• Class 5™ Vibration Reduction System (VRS) reduces fatigue caused by micro-impacts
• Waxwing carbon fork featuring a 12 x 100mm thru-axle, Three-Pack and fender mounts, mid-blade eyelets, dynamo cable routing, and flat-mount brake standard
• Compatible with 700c (45 mm maximum) and 650b (51 mm maximum) wheels and tires
• Compatible with 1x, 2x, and electronic drivetrains
• Internal sleeved cable routing, dropper post-compatible
• Three water bottle mounts in the main triangle on 56–61 cm frames; two on 49–54.5 cm frames
• Top tube mount for Salsa EXP Series Direct Mount Top Tube Bag and additional mount on underside of down tube
• Accommodates a 40mm travel suspension fork and dropper post with internal routing (on 1x drivetrains only)

Specs

Specs

Build Kit

Build Kit

Geometry

Frame measurements (mm)	49cm	52.5cm	54.5cm	56cm	57.5cm	59cm	61cm
A. BB Drop	70	70	70	70	70	70	70
B. Chainstay Length	430	430	430	430	430	430	430
C. Fork Length - Axle to Crown	405	405	405	405	405	405	405
D. Fork Offset	50	50	50	50	50	50	50
E. Head Tube Angle (deg)	70.5	70.8	70.8	70.8	70.8	70.8	70.8
F. Headtube Length	90	120	140	160	180	200	220
G. Reach	359	367	371	380	390	399	407
H. Seat Tube Angle (deg)	75	74	73	73	73	73	72.5
I. Seat Tube Length - Center to Top	390	440	475	510	520	545	570
J. Stack	521	550	569	588	607	626	644
K. Standover	670	714	744	770	786	808	831
L. Top Tube Length (Effective)	499	525	545	560	575	590	610
M. Wheelbase	996	1012	1023	1038	1054	1070	1085
Component measurements (mm)
Crank Arm Length	165	175	180	180	180	180	180
Handlebar Width	380	400	420	440	460	460	460
Stem Length	70	70	80	90	90	100	110
Seatpost Offset	18	18	18	18	18	18	18

* All dimensions are preliminary and subject to change.
